IQ Plyboo Bamboo Acoustic Panels

Reveal Collection Acoustical Bamboo Wall Panels

Carved and Textured Bamboo Wall Panels

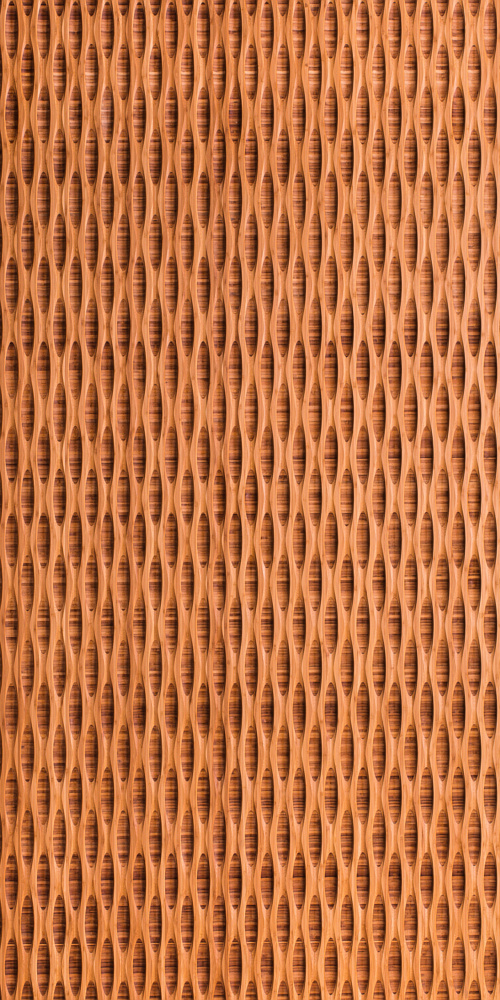

The Reveal™ collection is a series of carved and textured bamboo panels, manufactured by Plyboo.
When carved, an interplay between the face layer and revealed inner core creates a stunning visual effect. Plyboo’s proprietary RealCore™ technology insures the revealed cores are consistent and that layers of bamboo material in bi-directional construction allow for stability. This artistic collection is available in 8 different patterns and color options.

Reveal can help to contribute towards 3 LEED credits. It is made from 100% FSC certified Bamboo which is also rapidly renewable and free of Urea Formaldehyde. Sheet sizes are 4’x8′ X 3/4″ thick and available pre finished or unfinished.

Plyboo Acoustical Panel Reveal Reveal Panel Style C5 Specifications

Core Composition: RealCore™
Color: Amber or Natural
Material: 100% Bamboo
Size: 3/4″ x 48″ x 96″
Weight: 90 lbs
Surface Texture: Prefinished or Unfinished
Fire Resistance Classification: Class C (Class B available)
Emission Testing – Section CA 01350 Protocol: No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria
BP-V4896A/C5: Carb Phase II Compatible
BP-V4869A/C5-NAUF/FSC: SoyBond™ (no added formaldehyde), FSC 100%
FSC® C012079 The material in this product comes from well-managed forests, independently certified in accordance with the rules of the Forest Stewardship Council™.

http://www.plyboo.com/featured-product?panel=C5 for more information



PlybooSound Acoustical Bamboo Wall Panels

The PlybooSound panel brings together the elegance of our bamboo architectural designs with proprietary sound dampening QuietWall™ technology to help reduce ambient noise. Great for hospitality, public venues and large open work spaces. Plyboo’s proprietary RealCore™ technology insures that exposed cores are consistent and our bi-directional construction allows for maximum stability. Quiet never looked better! Available in 8 different patterns and colors.

PlybooSound can help to contribute towards 3 LEED credits. It is made from 100% FSC certified Bamboo which is also rapidly renewable and free of Urea Formaldehyde. Sheet sizes are 4’x8′ X 3/4″ thick and available pre-finished or unfinished.



PlybooSound Panel Design A4 Specifications

Sound Absorption: QuietWall™ Technology

Core Composition: RealCore™

Color: Amber or Natural
Material: 100% Bamboo
Size: 3/4″ x 48″ x 96″
Weight: 90 lbs
Surface Texture: Prefinished or Unfinished
Fire Resistance Classification: Class C (Class B available)
Noise Reduction Coefficient (NRC): avg. 0.50
Sound Transmission Class (STC): avg. 0.00
Emission Testing – Section CA 01350 Protocol: No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria
BP-V4896A/A4: Carb Phase II Compatible
BP-V4869A/A4-NAUF/FSC: SoyBond™ (no added formaldehyde), FSC 100%

FSC® C012079 The material in this product comes from well-managed forests, independently certified in accordance with the rules of the Forest Stewardship Council™.

http://www.plyboo.com/featured-product?panel=C5 for more information





Linear Line Inspired by the depth and movement of hand loomed fabric.

Made entirely of carved Plyboo bamboo panels, the vertically fluted face layer reveals a uniquely graphic inner core. These intersecting surfaces harmoniously suggests the natural, tactile quality of a woven
textile that is both curious and compelling. The Linear Line collection is suitable for any interior feature, and is available in 6 architecturally inspired styles each utilizing RealCore™ Technology in varied compositions.

The Linear Line Collection can help to contribute towards 3 LEED credits. It is made from 100% FSC certified Bamboo which is also rapidly renewable and free of Urea Formaldehyde. Sheet sizes are 4’x8′ X 3/4″ thick and available pre finished or unfinished.

IQ Plyboo LinearLinear Line Panel Style LL1 Specifications

Core Composition: RealCore™ Technology
Color: Amber or Natural
Material: 100% Bamboo
Size: 3/4″ x 48″ x 96″
Weight: 90 lbs
Surface Texture: Prefinished or Unfinished
Fire Resistance Classification: Class C (Class B available)
Emission Testing – Section CA 01350 Protocol: No VOC’s with chronic REL’s (reference exposure level) detected; passes office, school, and residential criteria
BP-V4896A/LL1: Carb Phase II Compatible
BP-V4869A/LL1-NAUF/FSC: SoyBond™ (no added formaldehyde), FSC 100

FSC® C012079 The material in this product comes from well-managed forests, independently certified in accordance with the rules of the Forest Stewardship Council™.
